Quick Details

  • Condition: New
  • Type: nano bead mill for paint
  • Product Type: Paint
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Tonghui
  • Model Number: DCD-200
  • Voltage: 220/380/415V
  • Power(W): 5500-250000
  • Dimension(L*W*H): custom-made
  • Weight: 1000-1500kg
  • Certification: CE
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Tank capacity: 17L
  • Motor power: 45-55kw
  • Maximum flow rate: 3000L/h
  • Speed adjustment: Frequency converter control
  • Inner Chamber: hardened steel
  • Activation pins: SUS304
  • Pump type: Diaphragm pump/ Gear Pump
  • Control system: touch screen with PLC
  • Custom-made: is ok for us
  • Color: as ordered

Packaging & Delivery

Packaging Details Printing ink making machine, high flow bead mill: International package with standard package
Delivery Time 30 workings days
Product Description

Product Application

The excellent quality of bright-colored and high-resolution fashion mobile phones. It is more used for the fields of paints and varnishes, inks, agricultural chemicals, chemicals, paper making and nanotechnology.
* High quality color filter of TFT screen ad PLC display screen.
* More glorious car paint, high solids and water-based products.
* Heavy coatings with higher resistance.
* Nona-level grinding of photosensitive pigmet makes it more brilliant, eye-catching.
* In the production of high quality dyeing paint, the enhanced color strength can lead to more econimic benefits.
* Super inkjet products with higher quality;
* High quality packaging and silver ink with more gloss and transparency.

Type
DCD-12
DCD-100
DCD-200
DCD-400
DCD-800
Motor power
5.5kw
22~30kw
45~55kw
90~110kw
250kw
Chamber capacity
2L
10L
17L
30L
79L
Max. flow rate
300L/h
1200L/h
3000L/h
6000L/h
12000L/h
Grinding vessel
hardened steel
Activation pins
Tungsten carbide
Motor type
Ex-proof type or Non-Ex-proof type
Speed adjustment
With Inverter
Control system
Touch screen with PLC/ Ex-proof operation box
Pump type
Diaphragm pump/ Gear Pump/ Screw pump

Main Features

The wetted parts of machine is made of hardened stainless steel and Tungsten Carbide
· Variable Speed Drives of Agitator and Product Slurry Feed Pump through Variable Frequency Drives (VFD)
. Unit in EXPLOSION PROOF design
· Double acting mechanical seal with cooling coils for the circulation of cooling water
· Hydraulic lift for grinding vessel
· Pressure transducer in the product feed line providing an analog output signal
· Product discharge temperature probe at the end of the discharge pipe
· OMRON programmable logic controller (PLC) and software license for PLC

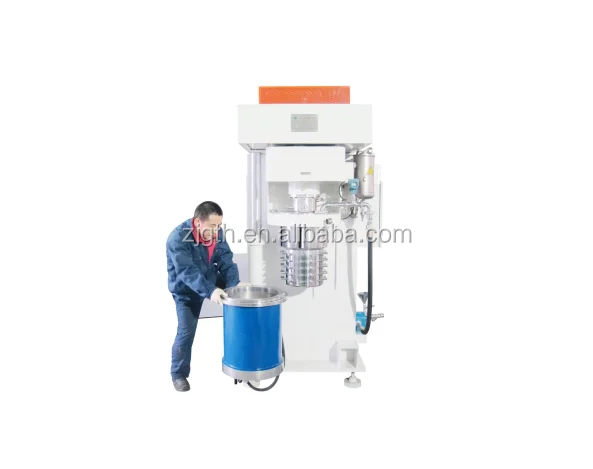

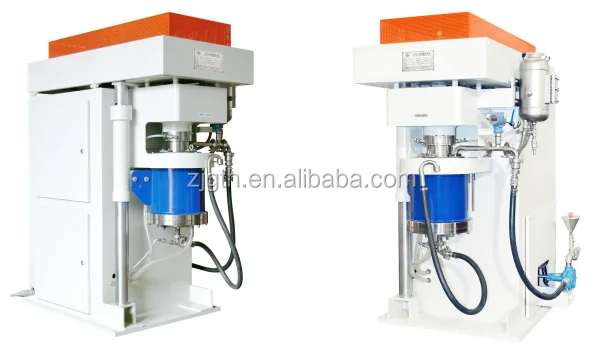

Detailed Images

Machine Parts

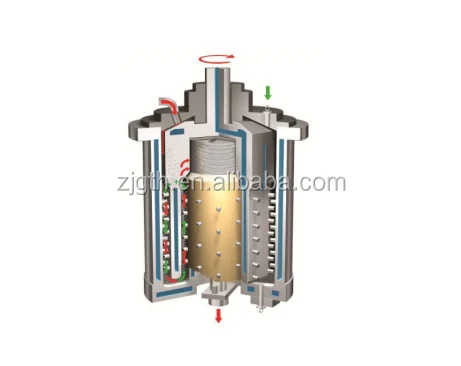

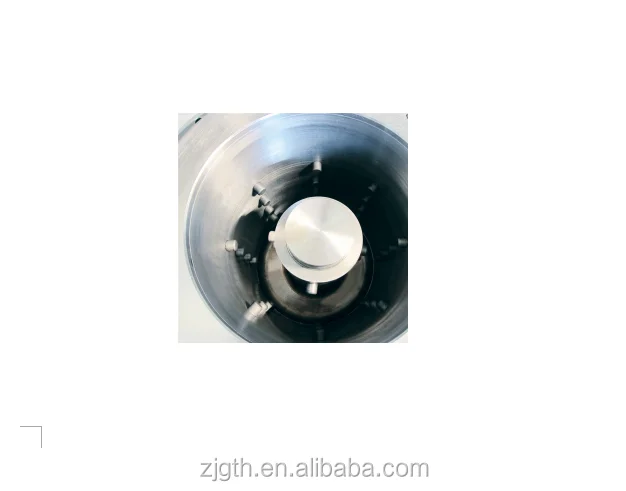

> outer plus inner peg milling annulus
> high efficiency cooling of rotor, outer and inner stator + bottom
> discharge screen in center

Main Features

> product inlet from the top
> power input by forced displacement of media in the range 0,1
> internal media recirculation
> media separation by centrifuging
> product discharge through removable protection screen on top of inner stator

Machine Parts

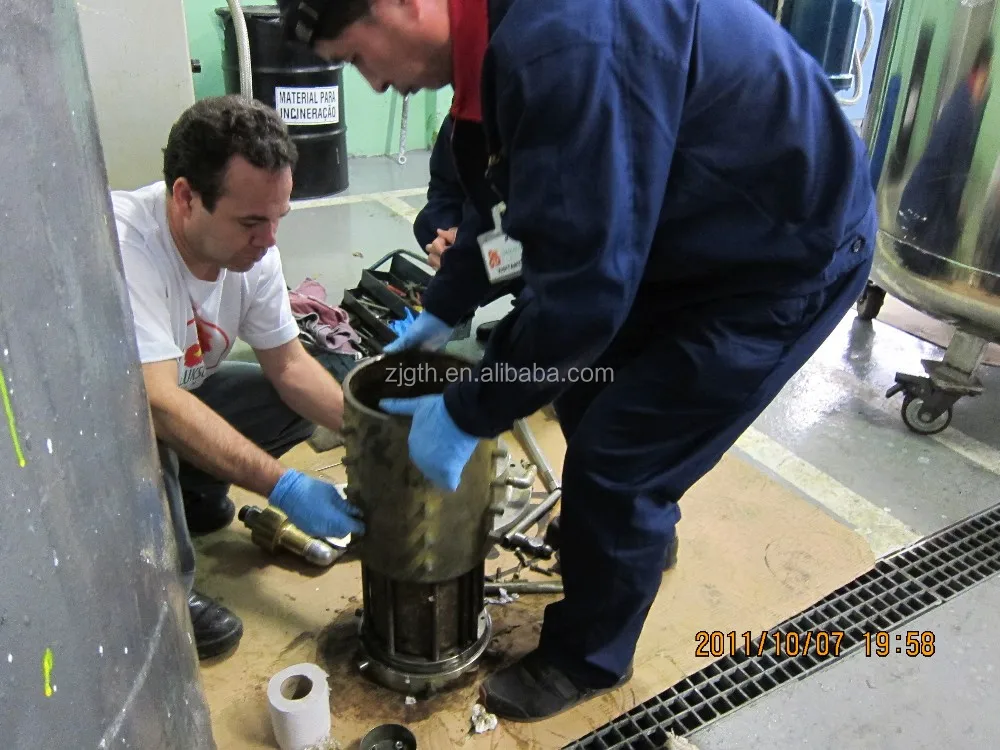

> Easy to master, and all the maintenance can be completed quickly and easily.

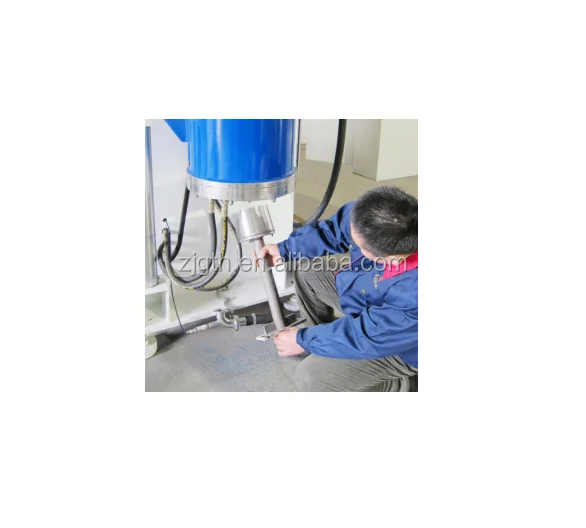

> It is simple to make the grinding chamber decline by an integral lifting device.
> The grinding chamber can drop and rotate along the pivot.

Main Features

> No need to discharge and grind the media, removal of protection screen without draining mill
> Min. product loss during product change.

Our Service

Pre-Sales Service

Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments.
1> Select equipment model;
2> Design and manfacturer products according to clients' special requirements;
3> Train technical personnel for clients;

After-Sales Service

Provide considerate services to minimize clients' worries:
1> Assist clients to prepare for the first project;
2> Install and debug the equipment;
3> Train the first-line operators;
4> Take initiative to eliminate the trouble rapidly;
5> Provide technical replacement;
6> After-sales team will solve problems via operating and provide technical instruction;
