Quick Details

  • Condition: New
  • Mixer Type: Agitator
  • Product Type: Paint
  • Application: Liquid with Suspended Solids
  • Additional Capabilities: Coating
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Tonghui
  • Model Number: GFJ Paint Mixing Machine
  • Max. Loading Capacity: 8000L
  • Voltage: 220V/380v/415V/440V
  • Power(W): 0.55KW~110KW
  • Dimension(L*W*H): Custom Made
  • Certification: CE, ISO9001
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Paint Mixing Machine
  • Motor power: 0.55~200kw
  • Capacity: 2~8000L
  • Diameter of dispersing disc: 30~600mm
  • Lift: 200~2800mm
  • Pump power: 0.55~3kw
  • Speed adjustment: frequency control
  • Height adjustment: hydraulic lifting
  • Color: as ordered
  • Custom-made: is OK for us.

Packaging & Delivery

Packaging Details :Paint Mixing Machine: International package with moistureproof
Delivery Time Paint Mixing Machine: 40 days

 Paint Mixing Machine



GFJ industrial paint making mixing machine





Product Description

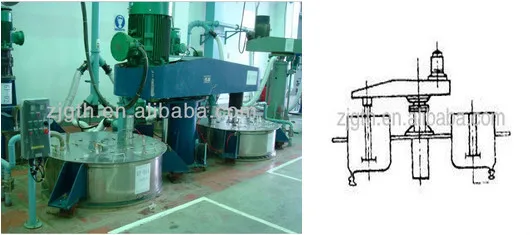

High-speed Disperser is to dissolve, disperse and mix materials with different viscosity. Through the very high peripheral tip speed of the toothed disc, the strong shearing, crashing and friction forces generated between the materials and toothed disc disperse, dissolve and mix the materials efficiently. The large stress forces break down the agglomerates into the liquid or paste suspension.

1. Introduction

  • For paint, coating, pigment, inks, dye and adhesive;
  • It can mix, disperse, dissolve two or more kinds of liquid and powder materials;
  • Hydraulic lifting system for production;
2. Option selection
  • Hydraulic lifting system for production;
  • Siemens/ Danfoss Frequency converter optional;
  • Ex-proof system can be customized as requirement;
  • Vacuum production high speed disperser is available;
  • Customized equipment is available.
  • Two types: Stand type and Platform type
3. Two types
  • Floor Standing Type

  • Platform Type








Technical Parameter

 * Custom-made is OK for us.

Type

Motor

Speed

Disc

Lift

Pump

Capacity

Weight

GFJ-1.5

1.5kw

0-1450rpm

150mm

800mm

0.55kw

50L

350kg

GFJ-4

4kw

0-1450rpm

200mm

800mm

0.55kw

200L

400kg

GFJ-5.5

5.5kw

0-1450rpm

250mm

900mm

0.75kw

400-600L

800kg

GFJ-7.5(11)

7.5kw/11kw

0-1450rpm

250mm

900mm

0.75kw

400-600L

820kg

GFJ-22(30)

22kw/30kw

0-1450rpm

350mm

1200mm

1.5kw

600-1000L

1500kg

GFJ-37

37kw

0-1200rpm

400mm

1200-1500mm

1.5kw

1000-2000L

1580kg

GFJ-45/75

45-75kw

0-1200rpm

450mm

1500-2000mm

2.2kw

1000-2500L

2100kg
