SJ putty mixing machine with double shafts

FOB Reference Price:Get Latest Price
US $5,500-85,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
80 Set/Sets per Year
Port:
Shanghai port
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Agitator
Product Type:
Paint
Application:
Viscous Fluid
Additional Capabilities:
Coating
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
TongHui
Model Number:
SJ
Max. Loading Capacity:
5000
Voltage:
Optional
Power(W):
7.5~75kw
Dimension(L*W*H):
Custom made
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Tank capacity:
150~5000L
High speed motor power:
11~75kw
Low speed motor power:
7.5~37kw
Diameter of high speed disc:
200~600mm
Diameter of low speed blade:
270~1500
Speed of high speed shaft:
0~1470rpm
Speed of low speed shaft:
60/120rpm
Lift:
700~1500mm
Cusotm-made:
is OK fo rus.
Color:
as ordered
Packaging & Delivery
Packaging Details
International package with moistureproof.
Delivery Time
Shipped in 40 days after payment

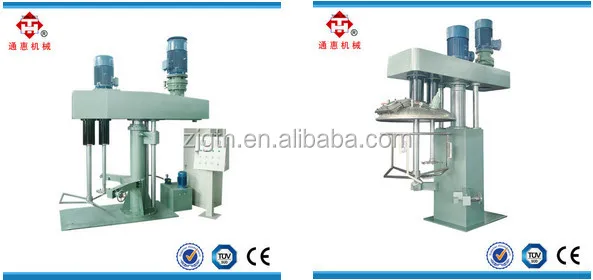

  SJ putty mixing machine with double shafts



Product Description

    It contains seven sections: hydraulic pressure elevate, wheel box, high speed mixer axis, clamp device, mixer canister, hydraulic pressure system, electric control box.

1. Introduction

  • DSJ Industrial Butterfly Paint Agitator Mixer is a high efficiency mixing equipment.
  • The mixing device is three leaf butterfly blade.
  • Vacuumize during mixing process to improve quality.
  • It can both mix and move up and down automatically to improve production efficiency.
  • It's applicable for high viscosity putty, adhesive and offset ink industry.

 2. Feature

  • SJ double-axle mixer is widely used in printing ink, food, pigment and so on.
  • Different rotational speed of shaft can be better dispersed and mixed.








Technical Parameter

  * Custom-made is OK for us.

TypeMain motor  Speed      Diameter  Lift    hydraulic pressureOil pump
DSJ-6007/11kw65/130rpm570mm700mm2mpa1.1kw
DSJ-90014/22kw65/130rpm
870mm900mm3mpa1.5kw

DSJ-1000

17/26 or 24/34kw65/130rpm970mm900mm3mpa2.2kw
DSJ-120030/42kw65/130rpm1160mm1200mm6.3mpa2.2kw
