Quick Details

  • Condition: New
  • Mixer Type: Agitator
  • Product Type: Paint
  • Application: Liquid with Suspended Solids
  • Additional Capabilities: Coating
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Tonghui Paint Making Machine
  • Model Number: GFJ Paint Making Machine
  • Max. Loading Capacity: 8000L
  • Voltage: 220V/380v/415V/440V
  • Power(W): as ordered
  • Dimension(L*W*H): as ordered
  • Certification: CE
  • Warranty: 12 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Paint Making Machine
  • Motor power: 0.55~200kw
  • Speed: 0~1450/ 1200/ 1000rpm
  • Diameter of disc: 150~600mm
  • Lift: 260~2800mm
  • Pump power: 0.55~3kw
  • Capacity: 2~8000L
  • Speed adjustment: frequency converter control
  • Height adjustment: hydraulic lifting
  • Color: as ordered

Packaging & Delivery

Packaging Details Paint Making Machine: International package with moistureproof.
Delivery Time Paint Making Machine: 40 days
Product Description

Product Introduction

High-speed Disperser is to dissolve, disperse and mix materials with different viscosity. Through the very high peripheral tip speed of the toothed disc, the strong shearing, crashing and friction forces generated between the materials and toothed disc disperse, dissolve and mix the materials efficiently. The large stress forces break down the agglomerates into the liquid or paste suspension.

Main Features

1> For paint, coating, pigment, inks, dye and adhesive;

2> It can mix, disperse, dissolve two or more kinds of liquid and powder materials;
3> Hydraulic lifting system for production;

Technical Parameter

Option selection

1> Hydraulic lifting system for production;
2> Siemens/ ABB/ Danfoss HOLIP Frequency converter optional;
3> Ex-proof system can be customized as requirement;
4> Vacuum production high speed disperser is available;
5> Customized equipment is available.
6> Two types: Stand type and Platform type

Type
Motor
Speed
Disc
Lift
Pump power
Capacity
Weight
GFJ-1.5
1.5kw
0-1450rpm
150mm
800mm
0.55kw
50L
350kg
GFJ-4
4kw
0-1450rpm
200mm
800mm
0.55kw
200L
400kg
GFJ-5.5
5.5kw
0-1450rpm
250mm
900mm
0.75kw
400L
600kg
GFJ-7.5
7.5kw
0-1450rpm
250mm
900mm
0.75kw
500L
720kg
GFJ-11
11kw
0-1450rpm
300mm
1000mm
0.75kw
600L
850kg
GFJ-22
22kw
0-1450rpm
350mm
1200mm
1.5kw
800L
1200kg
GFJ-30
30kw
0-1200rpm
350mm
1200mm
1.5kw
1000L
1500kg
GFJ-37
37kw
0-1200rpm
400mm
1200mm
1.5kw
1000~2000L
1700kg
GFJ-45
45kw
0-1200rpm
450mm
1500mm
2.2kw
1000~2500L
2000kg
GFJ-75
75kw
0-1200rpm
500mm
1600mm
2.2kw
1000~2500L
2300kg
GFJ-90
90kw
0-1000rpm
600mm
1800mm
3kw
2500~4000L
2600kg
Detailed Images

Machine Part

Name: Single-layer Dispersing disc
Material: SUS304/ SS316
The tip speed needs to reach 18~25m/s.
Sizes of this dispersing disc can be customized.

Machine Part

Name: Double-layer Dispersing disc
Material: SUS304/ SS316

The tip speed needs to reach 18~25m/s.

The effect of double-layer is better than signle type, but it needs to increase the main motor power.

Sizes of this dispersing disc can be customized.

Machine Type

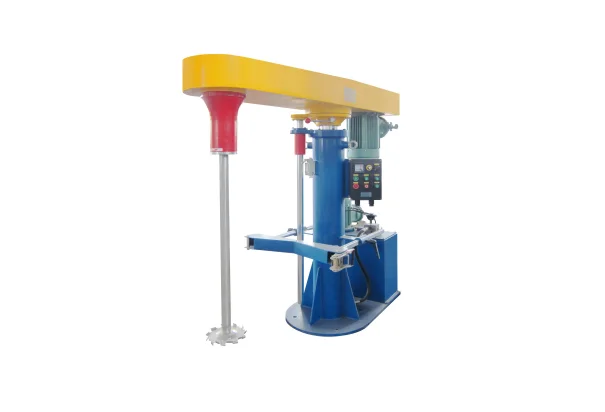

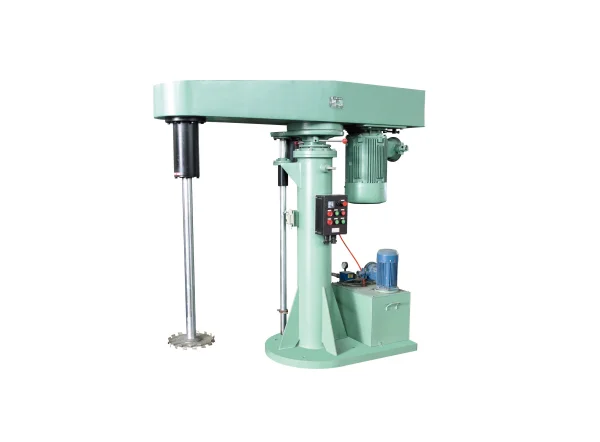

Name: Stand floor type

It's suitable for the disperser with 1.5~75kw motor power.

It has three options of holding device: none, belt holding device and screw holding device.

Machine Type

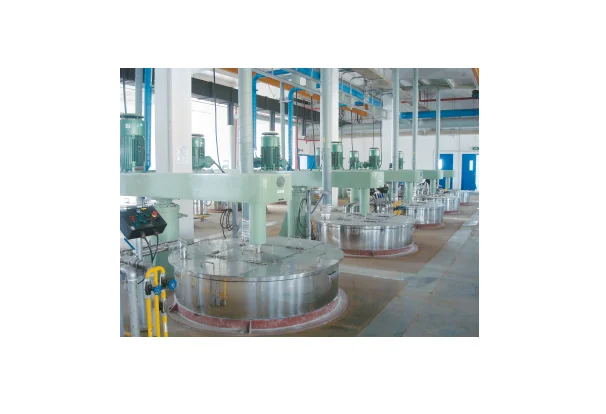

Name: Platform Type

It's suitable for the disperser with 22~200kw motor power.

And it can be used for one machine with one tank, or one machine with two tanks with rotation motor.


Our Service

Pre-Sales Service

Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments.
1> Select equipment model;
2> Design and manfacturer products according to clients' special requirements;
3> Train technical personnel for clients;

After-Sales Service

Provide considerate services to minimize clients' worries:
1> Assist clients to prepare for the first project;
2> Instell and debug the equipment;
3> Train the first-line operators;
4> Take initiative to eliminate the trouble rapidly;
5> Provide technical replacement;
6> After-sales team will solve problems via operating and provide technical instruction;
